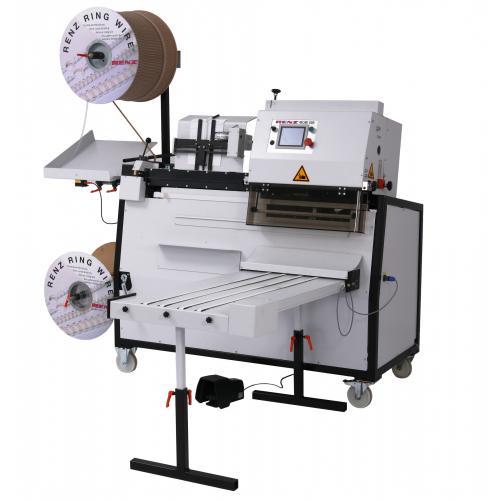

User friendly, flexible, semi-automatic RENZ RING WIRE® binding machine for books, calendars and skip binding.
- Semi-automatic ring wire binding machine for books, calendars and skip binding
- High flexibility of different paper formats
- Ability to bind oversized products
- Touch screen assisted setup process
- Short setup times no tools required
- Binds up to 260 sheets
- Product is easily loaded by hanging it on to the element
- No special training is required
- Wheels allow the machine to be moved easily Optional extra:
- Shingle conveyor
- KAS calendar hanger systems
Specifications
|
Mechanical cycles per hour
|
1,000
|
|
Pitch
|
3:1, 2:1
|
|
Binding thickness
|
1 - 26 mm
|
|
Binding element Ø
|
5.5 - 32 mm
3/16" - 1 1/4"
|
|
Min. binding width
|
105 mm*
|
|
Max. binding width
|
500 mm
|
|
Min. unbound edge
|
148 mm*
|
|
Max. unbound edge
|
450 mm
|
|
Binding operation
|
Foot pedal
|
|
Time required for diameter change
|
4 - 10 min
|
|
Format change without diameter
|
2 min
|
|
Calendar hangers
|
Optional
|
|
Machine dimensions L x W x H
|
2,200 x 1,400 x 2,000 mm
|
|
Machine weight
|
500 kg (1)
|
|
Machine packing dimensions L x W x H
|
2,300 x 1,500 x 2,100 mm
|
|
Machine weight with packing
|
675 kg
|
|
Compressed air
|
No
|
|
Power requirement
|
230V~50Hz / 1kW
115V~60Hz / 1kW
|
