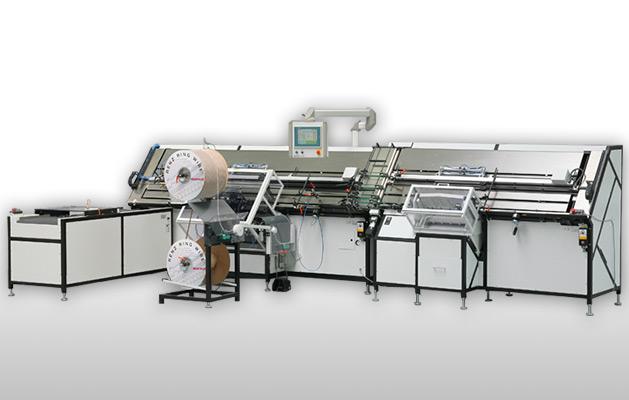

Industrial, high-speed, fully-automatic punching and RENZ RING WIRE® binding line for books, calendars and skip binding.
- Punching dies for all ring wire, calendars & skip binding
- Versatile calendar production line capable of producing a wide range of formats
- Simple & fast on-screen machine setup
- Touch screen assisted setup process
- QSA (Quick Size Adjustment) for high flexibility of different paper formats
- Integrated cover page lifting device
- Optional extra:
- Job memory, storage capacity of up to 50 jobs
- KAS calendar hanger systems
Specifications
|
Mechanical cycles per hour
|
2,500
|
|
Min. punching width
|
70 mm (1)
|
|
Max. punching width
|
500 mm
|
|
Min. unpunched length
|
135 mm (1)
|
|
Max. unpunched length
|
700 mm (1)
|
|
Max. punching thickness
|
4.5 mm
|
|
Punching operation
|
Automatic
|
|
Pitch
|
3:1, 2:1 ring wire and calendar
|
|
Selectable punch pins (QSA)
|
Yes
|
|
Binding thickness
|
15 mm
|
|
Binding element Ø
|
5.5 - 19 mm
3/16“ - 3/4“
|
|
Min. binding width
|
70 mm
|
|
Max. binding width
|
500 mm
|
|
Min. unbound edge
|
135 mm (1)
|
|
Max. unbound edge
|
700 mm (1)
|
|
Binding operation
|
Automatic
|
|
Time required for diameter change
|
20 - 30 min
|
|
Format change without diameter
|
5 min
|
|
Calendar hangers
|
Optional
|
|
Machine dimensions L x W x H
|
5,400 x 2,500 x 1,600 mm (3)
|
|
Machine weight
|
2,350 kg (2)
|
|
Machine packing dimensions L x W x H
|
Dependent on the configuration
|
|
Machine weight with packing
|
Dependent on the configuration
|
|
Compressed air
|
7.5 bar / 450 - 500 l/min
|
|
Power requirement
|
3 ~/N/PE 230/400V 50/60Hz 7-8KW
16A CEE
|
