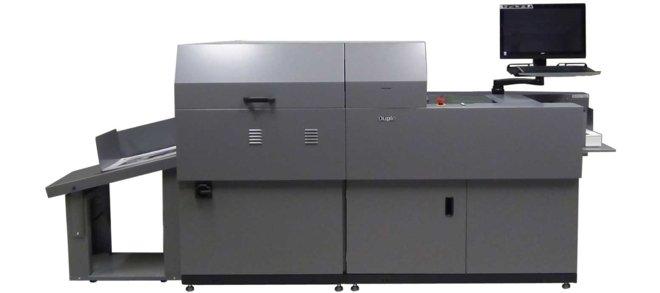

Digital Spot UV coater DDC-810 is Duplo’ s newly innovated product by using accumulated paper handling technology including inkjet press. To meet demand of spot UV coating from the market, DDC-810 provides compact and user friendly. It is compact size but achieves precise valued UV coating by incredible CCD reading system and inkjet control.
Specifications:
|
Paper size
|
Width 279 to 364 mm
Length 210 to 740 mm
Standard size B3, A3SR, A3, B4, A4 (LEF), letter size(LEF)
|
|
Paper quality
|
Art/coated paper: 157 to 450 g/m²
|
|
Paper type
|
Sheet
|
|
Printing method
|
Line-type inkjet method
|
|
Resolution
|
600 x 600 dpi
|
|
Printing area
|
10 mm from each edge(Maximum printing width: 331 mm)
|
|
Print data
|
PDF and TIFF
|
|
Print correction method
|
Automatic correction by camera system
|
|
Print accuracy
|
± 0.2 mm or less
|
|
Print thickness
|
20 to 80 µm (7 levels)
|
|
Processing speed
|
A3 21 ppm
A4 LEF 36 ppm
|
|
Paper feeding method
|
Belt suction method
|
|
Paper feed tray capacity
|
150 mm
|
|
Rating
|
Single phase model 208 to 240 V AC, 50/60 Hz, 36 A
Three phase model Y200 to 240V AC 380 to 415V 50/60Hz, 12A/phase(PEAK 16A).
|
|
Power consumption
|
Single phase model 6,000W.
Three phase model 6,000W.
|
|
Dimensions
|
In use 3,518 (W) × 1,454 (D) × 1,840 (H) mm
In storage 3,277 (D) × 810 (D) × 1,690 (H)mm
|
|
Weight
|
511 kg
|
