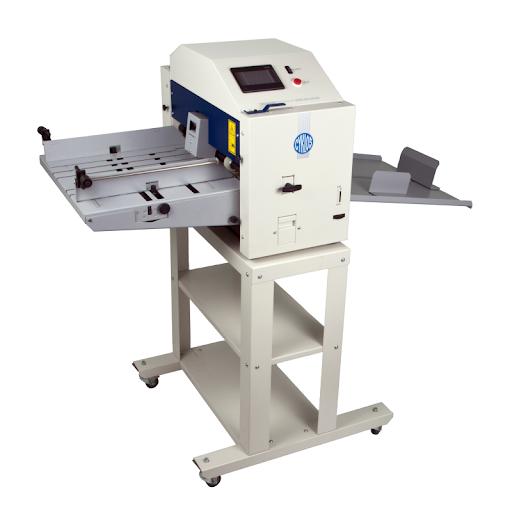

Another step up from the GPM 450 SA and the GPM 450 SPEED - is the new AIRSPEED 450 suction feed
creasing, perforating and punching machine. Its unique air feed system enables the processing of all types of paper within 80 - 400 gsm tolerance. Accuracy, feeding reliability, versatility of use, optional rotary perforating and cutting tools, and higher speed and input capacity - are all main factors of this model providing even more features and enhanced productivity than our other GPM 450 models.
- original AIR feeding with speed up to 3.000 A4 sheets/h
- large work table and working width suitable for A2 paper formats
- 7'' touch screen display for easy setting of distance and number of creases
- easily exchangeable creasing, perforating and punching tools
- rotary perforating and slitting tools
- kiss-cutting
- cross-perforation in 1 pass
- possibility of program storage
- two widths of fine creasing channels
- high-quality anvil perforation
- mobile table for easy manipulation
- batching
- optional wire punching tool
- optional calendar punching tool
- optional Euro Punch tool
- optional partial perforating tool
- optional ultrasound sensor for double sheet detection
- optional Sheet Turner(preferential for calendar punching)
- optional cutting tool
- optional micro perforating tool
Specifications:
|
Working width
|
|
115 - 457 mm
|
|
Grammage
|
|
80 - 400 gsm (creasing, punching), 80 - 250 gsm (perforating)
|
|
Width of crease
|
|
CITO 1,0 mm - paper grammage 80 - 200 gsm
iron channel 1,9 mm - paper grammage 200 - 400 gsm
|
|
Min/max distance between creases
|
|
1/ 999 mm
|
|
Number of programs
|
|
60
|
|
Input capacity
|
|
70 mm
|
|
Speed
|
|
3.000 sheets A4/ h (1 crease per sheet)
4.300 sheets A4/ h (0 crease per sheet)
|
|
Min/max number of creases per sheet
|
|
0/40
|
|
Max number of perf wheels
|
|
13 (1 in standard equipment)
|
|
Dimensions
|
|
1320 x 755 x 455 mm (h = 1225 mm - on table)
|
|
Packing size
|
|
1 pallet - 1200 x 800 x 720 mm (wooden box)
|
|
Weight
|
|
netto 140 kg, gross 189 kg (including the mobile table)
|
|
Voltage / Frequency
|
|
230 V/ 50Hz, 110 V/ 60 Hz
|
|
Content of packing
|
|
2 x creasing tool, 1 x perforating tool, 1 x rotary perforating kit, 1 x cutting wheel, mobile table
|
|
Optional devices
|
|
Ultrasound sensor for double sheet detection
Sheet turner with mobile table
|
|
Optional strike tools
|
|
Punching tool – square 5x5 mm, 2:1
Punching tool - square 6x6 mm, 2:1
Punching tool – square 4x4 mm, 3:1
Punching tool – square 4x4 mm, 3:1, calendar punch
Punching tool – round, dia 4 mm, 3:1
Punching tool – round, dia 4 mm, 3:1, calendar punch
Punching tool - oval 5x4 mm (plastic coil)
Micro perforating tool 30 TPI
Euro Punch tool
Partial perforating tool
|
|
Optional rotary tools
|
|
Perforating wheel 9 TPI
Micro perforating wheel 30 TPI
Cutting/kiss-cutting wheel
|
