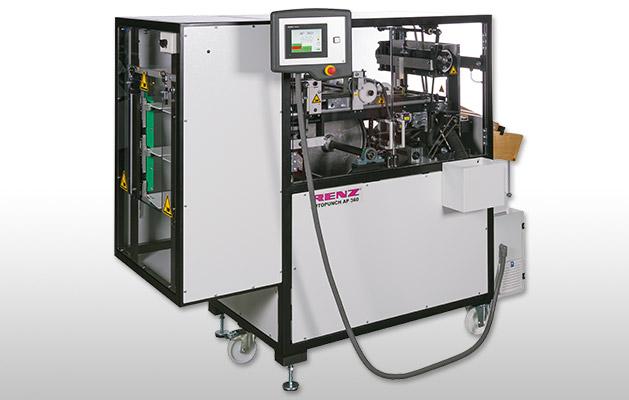

Heavy-duty, high-speed, professional, automatic, floor standing, auto-punch machine. For a range of book and calendar punching production.
- Punching dies for all types of ring wire, plastic comb, coil, calendars and bespoke dies are available.
- Two finger paper pick up system which can handle a range of mixed stock
- Fast die changes
- Optional 2-part split dies for book and calendar work
- Optional manual or digital format setup available
- Touch screen assisted set-up process with job memory.
- Wheels allow the machine to be moved
- QSA (Quick Size Adjustment) for high flexibility of different paper formats(1)
- Horizontal paper feeding for easy product loading
Specifications
|
Mechanical cycles per hour
|
up to 7,200
|
|
Min. punching width
|
100 mm
|
|
Max. punching width
|
360 mm
|
|
Min. unpunched length
|
85 mm
|
|
Max. unpunched length
|
360 mm
|
|
Max. punching thickness
|
2.4 mm (1)
|
|
Punching operation
|
Automatic
|
|
Punch dies available
|
3:1, 2:1 ring wire, calendar,
coil, plastic comb, tear-off
|
|
Die type
|
Professional
|
|
Selectable punch pins (QSA)
|
Optional
|
|
Bespoke dies
|
Yes
|
|
Variable margin depth
|
Optional
|
|
Die changeover time
|
3 min
|
|
Machine dimensions L x W x H
|
2,000 x 1,200 x 1,600 mm
|
|
Machine weight
|
680 kg (2)
|
|
Machine packing dimensions L x W x H
|
2,240 x 1,300 x 1,780 mm
|
|
Machine weight with packing
|
960 kg (2)
|
|
Power requirement
|
230V~50Hz / 2,3kW
115V~60Hz / 2,3kW
|
