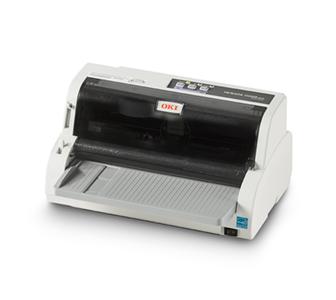

The compact, ML5100FB eco works seamlessly and reliably in tight locations and customer service points where space is at a premium. Ideal for demanding commercial environments, crisp 24-pin print quality delivers sharp text and barcodes, while the flat paper path feeds heavier papers, labels and multi-part forms with total reliability.
Reliable performance - Delivers consistent results even in tight spaces
The compact, ML5100FB eco features a front in, front out paper-feed operation, enabling it to produce reliable results even in awkward locations and customer service points where space is at a premium.
- Compact size
- 80 column flatbed dot matrix printer
- 10,000 hours mean time between failures MTBF (duty cycle 25%, page density 35%)
Sharp output - Crisp, 24-pin print head quality
Crisp 24-pin print quality delivers sharp text and barcodes at quick speeds, making the ML5100FB eco ideal for printing detailed notes and small labels.
- Long-life 24-pin print head for high-quality print results
- Up to 375 characters per second (cps) print speed
On-demand delivery - Prints tickets, cheques, prescriptions and appointment cards on demand
Cut sheets can be fed front in or front out, making the ML5100FB eco an ideal addition for businesses printing individual tickets, cheques, prescriptions and appointment cards on demand. Continuous paper is handled by the built-in rear push tractor, with a sharp serrated edge on the front access cover providing easy tear-off.
- Flat paper path feeds heavier papers, labels and multi-part forms with total reliability
- Cut sheets can be fed front in or front out
- Sharp serrated edge on the front access cover providing easy tear-off
- Capable of printing up to 1 original and 4 copies
Cost-effective - Power consumption just 1.7W in Sleep Mode, reducing running costs
Developed with eco-friendly technology, the efficient ML5100FB eco consumes just 1.7W in sleep mode, reducing running costs and energy consumption.
- Power consumption in Sleep Mode at just 1.7W
- 2 million character ribbon life
Specifications:
Printing Technology
|
Serial Impact Dot Matrix Method
|
Print Head
|
24 Pin
|
Dot Wire Diameter
|
0.2 mm
|
Print Direction
|
Bidirectional/Unidirectional printing, Short line-seeking printing
|
Graphic Resolution
|
Max. 360(H) x 360(V) dpi
|
Print Speed
|
High Speed Draft : 333 cps, Utility : 250 cps, Letter Quality : 83 cps
|
Line Feed Pitch
|
4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.42mm(m/60 ")(m=0-127), n x 0.14mm(n/180 ")(n=0-255), n x 0.07mm(n/360 ") (n=0-255)
|
Feed Speed
|
4.5 inches per second
|
Feed Rate
|
4.23mm(1/6”) line feed: Approx. 48 milliseconds
|
Paper Route
|
Manual (Front), Tractor feeder (Rear)
|
Character Pitch
|
High Speed Draft : 10.0 cpi Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional
|
Printing Width
|
80 characters/line at ANK 10 cpi
|
Interface
|
IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), RS-232C (25pin)
|
Emulation
|
ESC/P emulation, IBM ProPrinter emulation, IBM AGM emulation
|
Supported OS
|
Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64
|
Receive Buffer
|
Max. 64KB
|
Resident Font
|
Utility, High Speed Draft, LQ Roman, LQ Courier, LQ Swiss, LQ Prestige, LQ Orator, LQ Swiss Bold, OCR-A, OCR-B
|
Font Style
|
Double Width, Double Height, Enhanced, Emphasized, Bold, Italics, Over score, Outline, Shadow, Underline
|
1-D Barcode
|
UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
|
Paper Type
|
Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label
|
Paper Weight Adjustment
|
Manual
|
Paper Size
|
Continuous paper: Width 76.2-254.0mm x Length 76.2-558.8mm Single part paper: Width 90.0-257.0mm x Length 70.0-364.0mm Multi part paper: Width 76.2-254.0mm x Length 76.2-558.8mm
|
Paper Weight
|
Continuous paper : 45 - 110 gsm Single part paper : 45 - 135 gsm Multi part paper : 26 - 34 gsm
|
Copy Capability
|
Normal print mode: original + 4sheets(Total Thickness < 0.33mm) High copy print mode: original + 4 sheets(Total Thickness <0.33mm)
|
Dimensions(WxDxH)
|
349 x 289 x 180 mm
|
Operating Environment
|
Operating: 5 - 40 °C, 30 - 85 %RH Storage: -20 - 60 °C, 0 - 95 %RH No condensation
|
Power Source
|
Single phase 220 - 240 VAC ±10%, 50/60 Hz ±2%
|
Power Consumption
|
Operating: Max. -W (ISO10561 (LQ Roman, Range1) Printing Approx. 45W) Power Save: < 1.3W
|
Safety & Environment Regulation
|
Energy Star, EMC-Directive, GS Mark, CE Mark, CCC Mark
|
Noise Level
|
Operating :Approx. 58 dBA
|
MTBF(Mean Time Before Failure)
|
10,000 hours
|
Ribbon Life
|
Black : 2 million characters
|
Print Head Life
|
Approx. 300 million strokes/ pin
|
In the Box
|
Ribbon cartridge, Power cable, CD-ROM, Others
|
